This is boat model esc is specially designed for boat use with water-cooling system.

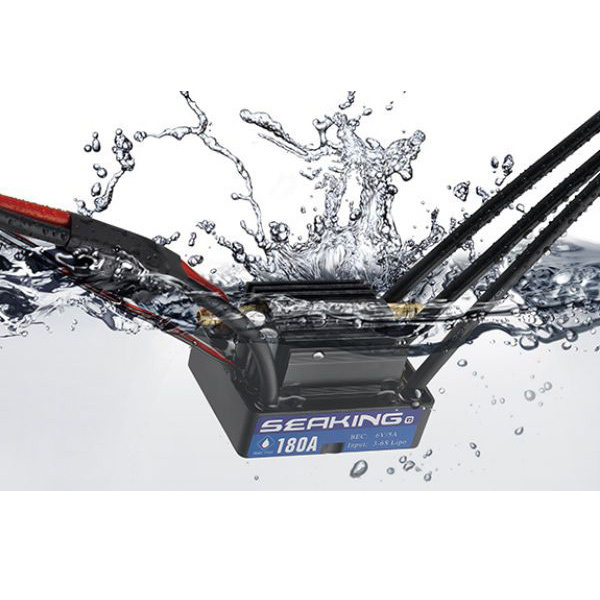

Excellent waterproof design (rates as IP 67) allows this ESC to work in water without any extra precautions.

High quality components have very strong over-current withstanding capabilities.

Patented Copper Heat Conduction technology and high-efficiency water cooling system can easily dissipate the heat produced in operation under high load.

The special firmware designed for RC boats can make the acceleration punchier and the handling more stable.

The External Programming Port can connect to the LED Program Box for easily setting the parameters of the ESC.

Multiple protections like low-voltage cutoff protection, thermal protection and throttle signal loss protection, make the ESC more reliable.

Specification

Continuous Current: 180A

Peak Current: 1080A

Input: 2-6S Lipo

BEC Type: Switch Model

BEC Output: 6V/5A

External Programming Port: Available

Water Cooling Pipe (Inside / Outside): 3.0 / 5.4 mm

Size (Include the Water Cooling Pipe): 72X48X36.6mm

Weight: 207g

Includes: 6mm Female bullet connectors soldered to the motor side with a loose matching set for you motor of choice.

This esc was designed to work in an environment where its possible for the esc to get wet on occasion. Not for use undewater. OSE does not suggest using this item under water!!

This esc is suggested for smaller boats upto the 27"- 40" (550mm - 1000mm) range. Because there are so many variables with each hull and installation its impossible to specify all the applications for this esc. If you have any questions on using this esc with your particular boat, please contact us before purchase.
SKU HWG-SK180
Brand HOBBYWING
